OVERVIEW

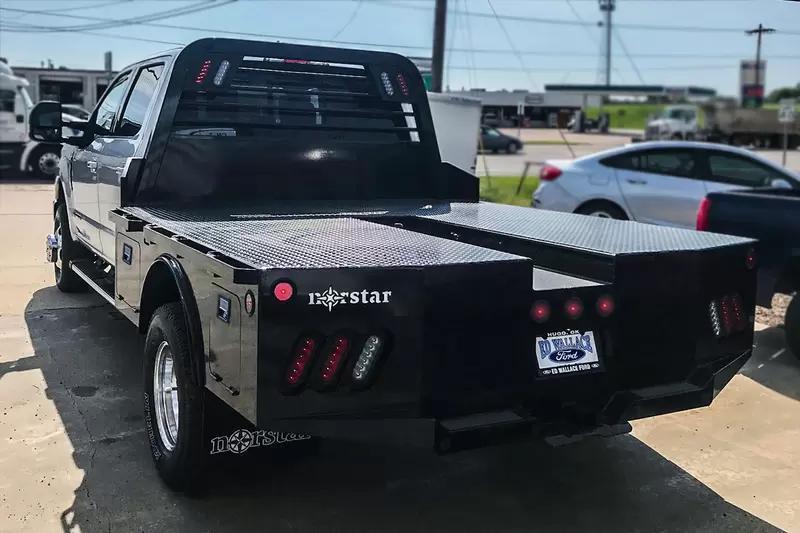

If you are looking for a no frills heavy hauling truck bed for your farm or business, our SF model might be right up your alley. Full steel construction with integrated one piece tubular headache rack will give a lifetime of service. This bed has smooth steel sides and recessed stake pockets for a clean fit and finish and a diamond plate deck to help with your toughest of chores as well as standard LED lighting. Tapered corners and recessed gooseneck ball along with seven way plug and four way adapter are also standard to get you towing right out of the gate. Also standard is a full skirted rear bumper with a grip tape step. Add optional bale spikes for moving hay bales around the ranch or a gooseneck trough and 3/16" tread plate deck to tackle your toughest towing jobs.

SPECIFICATIONS

Steel Structural Frame

4″ Runner Channels

Formed 3/16″ Channel Cross Members

Steel Tube Head Rack w/ Cross Bars, Tail & Rev. Lights

Steel 1/8″ Diamond Plate Floor

Built in Gooseneck Ball Mount w/ Diamond Plate Lid

Smooth Side Rails with Internal Stake Pockets

Fuel Filler Neck

Skirted Rear Bumper w/ Anti Slip Step

Receiver Hitch Ready

Premium Powder Coated Black

2.5″ LED Reflective Marker Lights

4 Clear 6″ Oval LED Reverse Lights

6 Red 6″ Oval LED ST/TL/TN Lights

Single LED License Plate Light

All Lighting DOT Approved

Molded Sealed Harness w/ Resistor

4 & 7 Way Receiver Female Plug w/ Adaptor

SIZE GUIDE

Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.

Length: Measurement from cab to end of frame.

Width: Measurement from outside of tire to outside of tire

CTA: Measurement from cab to axle

Runner: Measurement from outside of frame to outside of frame at the rear of the frame.

Models: ST, SF, SR, SD

Order Method: Model x Length x Width x CTA x Runner

Example: ST 9'4"L x 97"W x 60"CTA x 34" Runners (Add options) Note: 11' long beds will have 84" CTA

Ford

1998-Present

Dually -- 8'6"L x 97"W x 56" CTA x 38" Runners

Single Wheel Long Wheel Base -- 8'6"L x 84"W x 56"CTA x 38" Runner

Single Wheel Short Wheel Base -- 84"L x 84"W x 40"CTA x 38" Runner

Cab & Chassis -- 9'4"L x 92"W x 60"CTA x 34" Runners

F-350 takes a 92"W

F-450 & 550 are 94" & 97"W with Standard Headache Rack

2015 F650 Runners 34.5"

GM / Chevrolet

2001-Present

Dually -- 8'6"L x 97"W x 56"CTA x 42" Runners

Single Wheel Long Wheel Base -- 8'6"L x 84"W x 56"CTA x 42" Runner

Single Wheel Short Wheel Base -- 84"L x 84"W x 42"CTA x 42" Runner

Cab & Chassis -- 9' 4"L x 90" or 92"W x 60"CTA x 34" Runners

(Prior to 2000 measurements will be required)

4500 & 5500 is 94"W with 60" Headache Rack

Dodge

2003-Present

2007 Cab and Chassis -- 9'4"L x 94"W x 60"CTA x 34" Runner

Mega Cab -- 84"L x 97"W x 40" CTA x 42" Runners

Mega Cab -- 84"L x 84"W x 38" CTA x 42" Runners

Dually -- 8'6"L x 97"W x 58"CTA x 42" Runners

Single Wheel Long Wheel Base -- 8'6"L x 84"W x 58"CTA x 42" Runner

Single Wheel Short Wheel Base -- 84"L x 84"W x 38"CTA x 42" Runner

2002 and earlier will have 56" CTA and 38" Runners on long be
